Writing Instrument PVD Plating Machine , Pen IPG 24 Real Gold Magnetron Sputtering Coating Plant

Name: Writing Instrument PVD Plating Machine Pen IPG 24 Real Gold Magnetron Sputtering Coating Plant
Brand: ROYAL
Price: 1 USD

Writing Instrument PVD Plating Machine , Pen IPG 24 Real Gold Magnetron Sputtering Coating Plant Manufactures

Brand Name : ROYAL

Model Number : RT1250-IPG

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 6 sets per month

Delivery Time : 8 to 12 weeks

Packaging Details : Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Chamber : Vertical Orientation, 1-DOOR

Material : Stainless Steel 304 / 316

Film Features : High Reflective, Excellent Corrosion And Wear Resistance

Worldwide Service : Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service : Machine operation, maintenance, coating process Recipes, program

Warranty : Limited warranty 1 year for free, whole life for machine

OEM & ODM : available, we support tailor made design and fabrication

Contact Now

Pen Writing Instrument PVD Gold Plating Machine / Pen IPG Gold Coating System

PVD Gold Coating Properties

Hard, Extremely thin layer, friction & heat resistant , more durable, excellent longevity.

Vakia coating equipment can produce highly reflective deep black films specifically for high quality
aesthetic demand.

The RTAC-SP series vacuum coating system is available for manufactures who are looking for high productivity and total coating solutions.

Writing Instrument PVD Plating Machine , Pen IPG 24 Real Gold Magnetron Sputtering Coating Plant

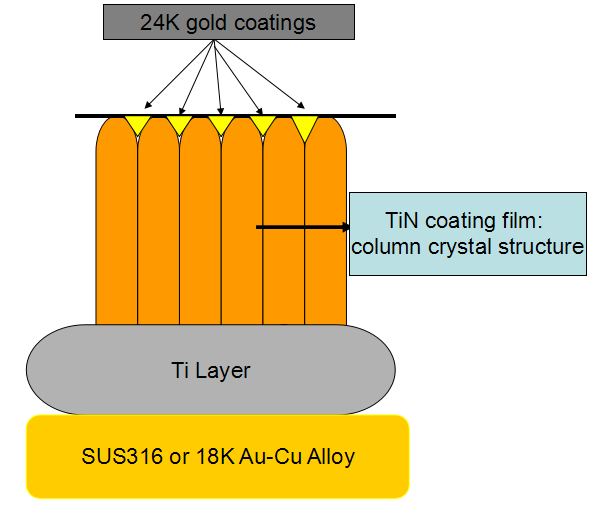

PVD Gold plating in the writing instrument industry application

Physical Vapor Deposition (PVD) decorative hard coatings in the home appliances & electronics made of

stainless steel material has been used widely for decades. It gives an attractive colors and high wear resistance for our luxury consumer goods such as: watch components, wring instruments or spectacles. Some manufactures want to maintain both the high wear resistance of PVD and the high reflective finishing surfacewhich provides the product with a high quality image.

PVD Gold Plating Machine Advantages

Robust design, large batches, fast cycle, flexible coating processes are the basic design concepts Vakia Vacuum Coating has been pursuing.

MODEL				RTAC1250-SP
TECHNOLOGY				Magnetron Sputtering (DC or MF) + Ion Plating
MATERIAL				Stainless Steel (S304)
CHAMBER SIZE				Φ1250 * H1250mm
CHAMBER TYPE				Cylinder, vertical, 1-door
SPUTTERING SYSTEM				Exclusively design for thin black film deposition
DEPOSITION MATERIAL				Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel
DEPOSITION SOURCE				2 Cylindrical Sputtering Targets + 8 Steered Cathodic Arc Sources
GAS				MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL				PLC(Programmable Logic Controller) + Touch Screen
PUMP SYSTEM				SV300B - 1 set (Leybold)
				WAU1001 - 1 sets (Leybold)
				D60T- 2sets (Leybold)
				Turbo Molecular Pumps: 2* F-400/3500
PRE-TREATMENT				Bias power supply: 1*36 KW
SAFETY SYSTEM				Numerous safety interlocks to protect operators and equipment
COOLING				Cold Water
POWER ELECTRICAL				480V/3 phases/60HZ ( USA compliant)
				460V/3 phases/50HZ ( Asia compliant)
				380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT				L3000W3000H2000mm
TOTAL WEIGHT				7.0 T
FOOTPRINT				( LWH) 50004000 4000 MM
CYCLE TIME				30~40 minutes (depending on substrate material, substrate geometry and environmental conditions)
POWER MAX..				155 KW
AVERAGE POWER CONSUMPTION (APPROX.)				75 KW

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
