R&D Multi-sources deposition Machine, High Film Uniformity Vacuum Coating Equipment

Name: RampD Multisources deposition Machine High Film Uniformity Vacuum Coating Equipment
Brand: ROYAL
Price: 1 USD

R&D Multi-sources deposition Machine, High Film Uniformity Vacuum Coating Equipment Manufactures

Brand Name : ROYAL

Model Number : RTSP-950

Certification : CE standard

Place of Origin : Made in China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 sets per month

Delivery Time : 8 to 12 weeks

Packaging Details : Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Deposition Sources : MF/DC sputtering + Arc evaporation

Deposition Films : Hard coatings, DLC, Optical film coating

Applications : Optical Lens, tools, Glass slides, Ceramic sheets, SS circular board ,Medical Instruments

Film Features : High Reflective, Excellent Corrosion And Wear Resistance

Coating Colors : Black Color And Rose Gold, Blue Colors Coating

Chamber : Vertical Orientation, 2-doors, front and back opening

Factory Location : Shanghai city, China

Worldwide Service : Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service : Machine operation, maintenance, coating process Recipes, program

Warranty : Limited warranty 1 year for free, whole life for machine

OEM & ODM : available, we support tailor made design and fabrication

Contact Now

Arc Evaporation + Magnetron Sputtering Coating Machine

RTAC-SP series coating equipment is a perfect combination of arc plating and sputtering deposition.

1. Features: ease maintenance, large volume, fast deposition, stable and high yield throughput. Chrome, black, gold, silver, blue and rainbow colors are available. It gives the manufactures who are looking for high quality surface finishing a guarantee.

Ion Plating combined with magnetron sputtering equipment enables virtually unlimited production of coatings on all types of substrates like: plastic, glass, ceramic, metal alloy, stainless steel. Resulting in outstanding high quality thin films and robust coatings. The various coating metals give a wide color ranges from: gold (18K ~24K), chroming, black, silver, blue, and rainbow.

Coatings Advantages

PVD sputtering + Ion Plating give a combination of advantages like no other can:
1. Economically efficient, generating the thinest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition and high quality surface finishes.

2. High Lights

Robust design, large batches, fast cycle, flexible coating processes are the basic design concepts that Royal Technology has been pursuing.

3. Arc + Sputtering Coating Equipment Models

Model	Size(mm)	Number of Planetary Rods	Cathodic Arc Sources	Sputtering Cathodes	Ion Source	Bias Power Supply (kVA)
RTAC950-SP	950xH1350 2-doors	3	8	4 Planar	Linear Anode	1*36
RTAC1213-SP	1250xH1350 2-doors	48	8	4 Planar	Linear Anode	1*30, AE
RTAC1250-SP	1250xH1250	6,8,12,16	8	4~8 Cylinder	depends on coating process and product	1*36
RTAC1008-SP	1000xH800	3	6	2 Cylinder		1*24
RTAC1616-SP	1600xH1600	6*6	9	2 Cylinder or Planar		1*48
RTAC1618-SP	1600x1800	6,8,10	18	4 Cylinder		1*48

4. Coating Samples by Arc and Sputtering Vacuum Coating Equipment

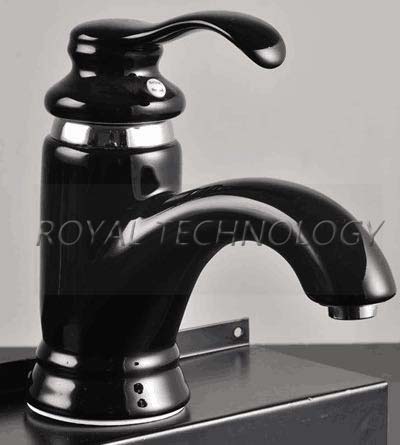

Bathroom fittings and faucets black film coating

R&D Multi-sources deposition Machine, High Film Uniformity Vacuum Coating Equipment

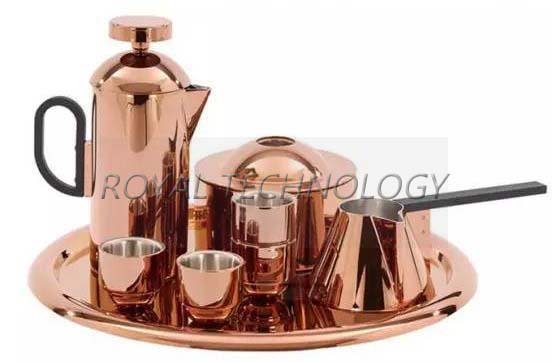

Rose gold coating on drinking ware.

R&D Multi-sources deposition Machine, High Film Uniformity Vacuum Coating Equipment

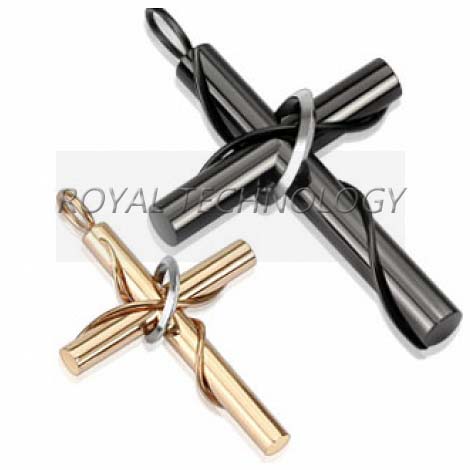

Jewelry Gold and Black Color Coating

R&D Multi-sources deposition Machine, High Film Uniformity Vacuum Coating Equipment

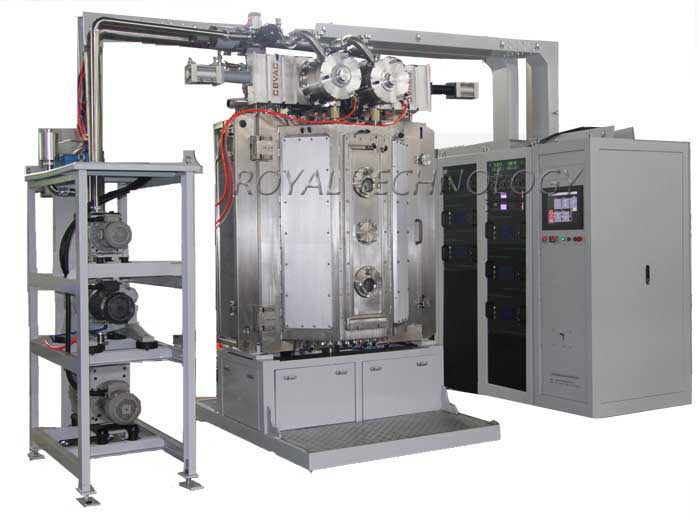

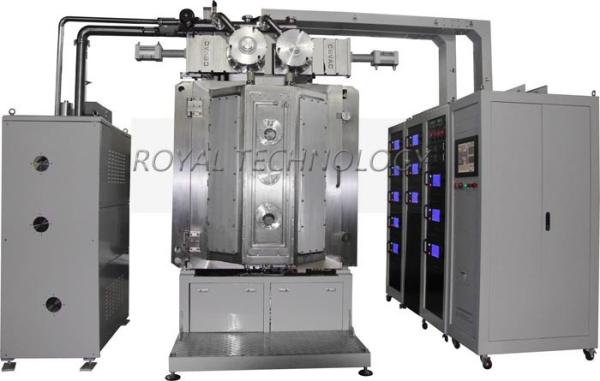

5. Equipment Model: RTAC-SP950

Built Time: 2015

Locating: Shanghai China

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
